技术参数 SPECIFICATIONS

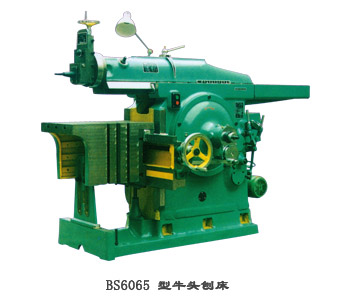

BS6065
BS6065A
BS6080
最大刨削长度Max. shaping length
650mm
800mm
滑枕底面至工作台面最大距离Max. distance from lower edge of ram to table
335mm
400mm
工作台上平面尺寸（长×宽）Dimension of top table (L×W)
650×450mm
800×450mm
工作台最大移动距离Max. travel of table
水平Horizontal
600mm
710mm
垂直Vertical
305mm
320mm
工作台快速移动Rapid travel of table
────
1.86m/min
1.35m/min
0.52m/min
0.39m/min
刀架最大垂直行程Max. vertical travel of tool head
175mm
160mm
刀架最大回转角度(在不入床身时)Max. swivel of tool head (out of column)
±60°
滑枕每分钟往复次数Frequency of ram strokes
12.5,17.9,25,36.5,52.5,73
9,17,30,42,58,81
滑枕往复一次工作台进给量Table feed per ram stroke
0.33—3.33mm
0.21—2.1mm
0.18—1.83mm
0.18—.83mm
0.06—0.6mm
主传动电机Motor of main transmission
3Kw,1420rpm
4Kw,1420rpm
5.5Kw,960rpm
工作台快移电机Motor of rapid traveling table
370w,1420rpm
机床外形尺寸(长×宽×高)Overall dimensions (L×W×H)
2320×1450×750mm
2960×1400×780mm
净重Net weight
1850kg
3600kg
